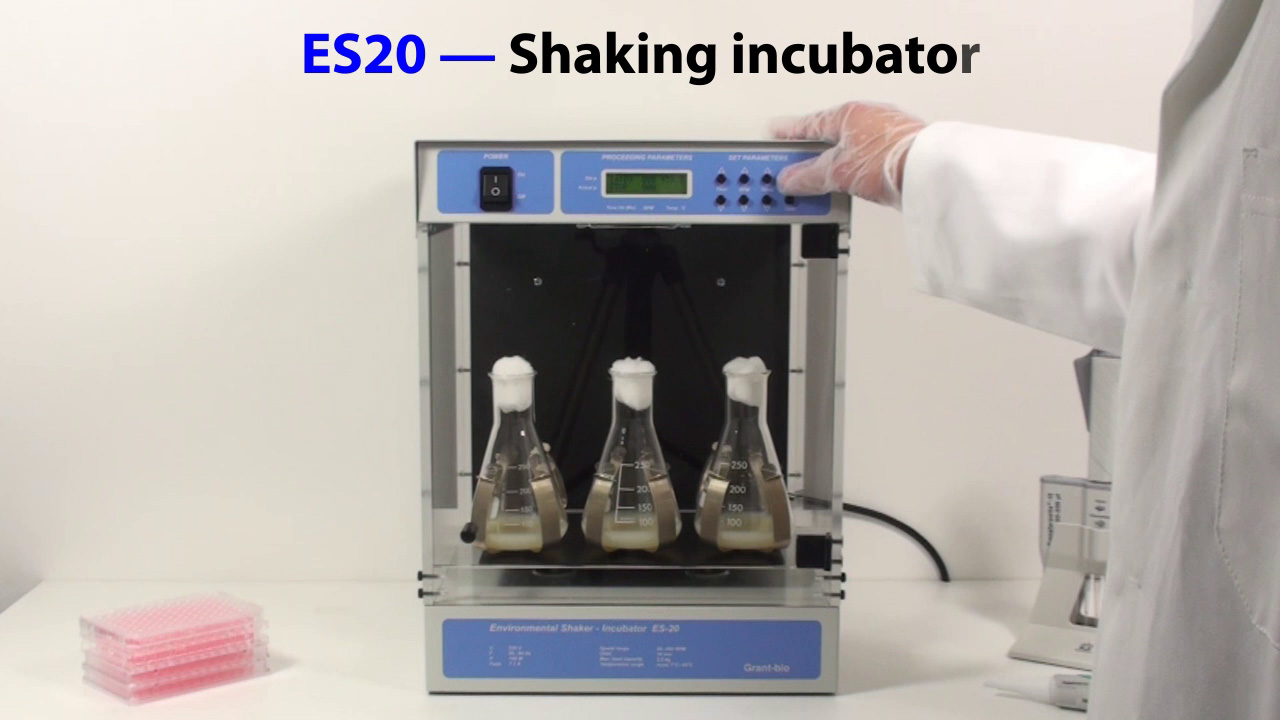

ES-20 Shaker-incubator
The Grant bio ES20 is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues.
- Digital control of time, temperature and shaking speed for accuracy and repeatability
- Variable speed: 50 to 250 rpm
- Temperature setting range: 25 to 42°C
- Load up to 2.5 kg
- Interchangeable platforms for shaking/incubating different vessels
- Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
- Equipped with direct drive shaking system for reliable, long-term operation
- Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD
- Option of four easily interchangeable platforms for a wide range of different
- Robust, compact construction with clear 7mm thick Plexiglass panels for easy visibility of chamber contents
- Designed for easy assembly/ disassembly - easy to move from one location to another
| Shaking incubators - specification | |||
|---|---|---|---|
| ES-20 | ES-80 | ||
| Speed range | rpm | 50 to 250 | |
| Orbit | mm | 10 | 20 |
| Temperature setting range | °C | 25 to 42 | 25 to 80 |
| Temperature control range | °C | +5 above ambient to 42 | +10 above ambient to 80 |
| Temperature setting resolution | 0.1°C/1rpm | 0.1°C | |
| Timer | 1 min to 96 hours | ||
| Continuous operation | hrs | 96 | 168 |
| Load capacity | kg | 2.5 | 8 |
| Display | 2 line 16 character LCD | ||
| Internal working height | mm | 270 | |
| Overall dimensions | w x l x h mm | 340 x 340 x 435 | 590x525x510 |
| Weight | kg | 15 | 43 |
| Power supply | V | 230 (50-60 Hz) | |
| P12-100 - Platform with clamps for 12 x 100ml flasks/150ml beakers Dimensions: 250 x 190 mm |
 |
| P6-250 - Platform with clamps for 6 x 250ml flasks/ 400ml beakers Dimensions: 250 x 190 mm |
|
| PUP-12 - Universal platform, with adjustable bars for different types of container Dimensions: 285 x 220 mm |
|
| PP-4 - Flat platform with non-slip rubber mat for Petri dishes and culture flasks Dimensions: 219 x 219 mm |
|
