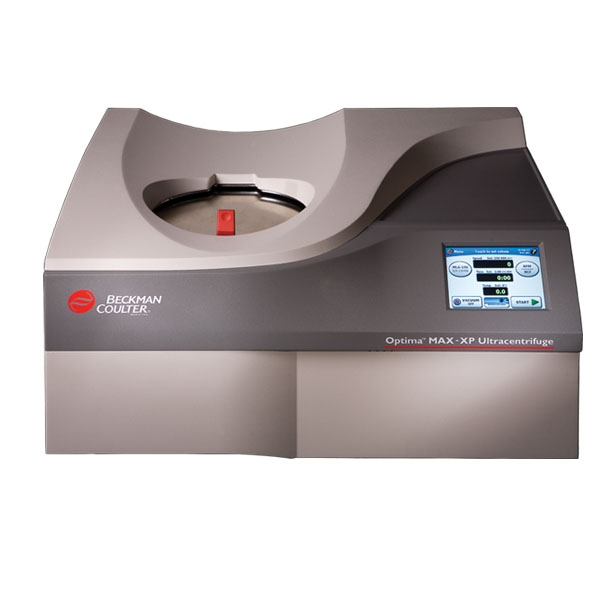

Optima MAX-XP

Global solutions to your separation challenges.

Look to Beckman Coulter to deliver the most comprehensive yet easy-to-use tabletop ultracentrifuge platform available. The Optima MAX-XP Ultracentrifuge is a power-packed solution that delivers fast, efficient separations from samples as small as 175 μl up to 32.4 ml,and at speeds up to 150,000 RPM and more than 1,000,000 x g. Every detail of the Optima MAX-XP is designed with the user in mind - from quiet operation to sophisticated software in multiple languages. Intuitive to operate,compact and versatile, the Optima Max-XP represents the latest in tabletop ultracentrifuge technology.

Árajánlatot, információt kérek!

Features

Designed as a total system, Optima™ MAX-XP ultracentrifuge systems, rotors and labware have been manufactured and tested based on unique system dynamics to ensure optimal performance and safety.

A versatile design combined with a wide choice of rotors, tubes and accessories make the Optima MAX-XP an ideal solution for traditional lab applications including sub-cellular particle separations and applications requiring high speeds and g forces with volume flexibility such as viral vector gene delivery and nanoparticle applications.

As with all our instruments, user safety is our priority. The Optima MAX-XP features a proprietary multi-level approach to biosafety offering reliable protection you can count on without compromising functionality or convenience.

Simple and intuitive user interface

Convenient touch-screen controls and easy-to-view display for gauging real-time speed, time and temperature
Customizable user interface allows personalization of easy-to-identify icons for up to twelve individuals, as well as sound and volume options

Innovative software

Advanced software with rigorous electronic record keeping including password-controlled access and complete audit trail documentation
Highly flexible enabling users to specify up to five steps, set multiple programs or delay start times
Multiple-language capability enhances productivity in labs around the world

Unrivaled rotor choices for fast, accurate results

Fully compatible with all Beckman Coulter fixed-angle, swinging-bucket and unique near-vertical-tube (NVT) tabletop ultracentrifuge rotors

Innovative tube technology

Four patented tube designs for unparalleled productivity across a wide range of applications

UNSPSC:	41103907
Height:	34.5 cm (13.6 in) front left; 39.4 cm (15.5 in) rear right
Width:	73.9 cm (29.1 in)
Depth:	61.7 cm (24.3 in)
Weight:	105 kg (230 lb)
Approximate Acceleration Time:	10 acceleration profiles
Approximate Deceleration Time:	11 deceleration profiles
Drive Type:	Variable frequency induction drive, rotor overspeed ID
Electrical Requirements:	220/240 V, 50 Hz; 120 V, 50/60 Hz; 100 V, 50/60 Hz
g Force:	1,019,000 x g (with MLA-130 rotor)
Max Speed:	150,000 rpm (with MLA-150 rotor)
Maximum Heat Dissipation into Room under Steady-State Conditions:	0.7 kW (2,400 BTU/hr)
Noise Level 1 Meter in Front of Centrifuge:	< 47 dBA
Refrigeration System:	Solid state, thermoelectric temperature control system with forced air, no coolant, no CFCs/ODCs
Set Speed:	Actual rotor speed ± 50 rpm of set speed
Set Temperature:	0°C to 40°C in 1° increments
Speed Range:	5,000 to 150,000 rpm
Temperature Control:	± 2°C of set temperature
User-Settable Programs:	All user programs have up to 5 steps each
Ambient Temperature Range:	15 to 35°C ambient
Clearances Required:	7.6 cm (3.0 in) both sides and rear
Time -- Actual Display:	Indicates run time remaining
Vacuum:	Moisture-purging vacuum system
User-Defined Programs:	RPM or RCF user selectable
Display:	Full-color LCD touch screen

367114	MLA-130 Rotor Pkg, Fixed Angle, 10x2.0 mL, 130,000 rpm, 1,019,000 x g
367120	MLA-130 Rotor, Fixed Angle, 10 x 2.0 mL, 130,000 rpm, 1,019,000 x g
393490	MLA-150 Rotor Pkg, Fixed Angle, 8 x 2.0 mL, 150,000 rpm, 1,003,000 x g
393489	MLA-150 Rotor, Fixed Angle, 8 x 2.0 mL, 150,000 rpm, 1,003,000 x g
A91774	MLA-50 Rotor, Fixed Angle, Aluminum, 6 x 32.4 mL, 50,000 rpm, 233,000 x g
A31459	MLA-55 Rotor Pkg, Fixed Angle, 8 x 13.5 mL, 55,000 rpm, 287,000 x g
393203	MLA-55 Rotor, Fixed Angle, 8 x 13.5 mL, 55,000 rpm, 287,000 x g
367096	MLA-80 Rotor Pkg, Fixed Angle, 8 x 8.0 mL, 80,000 rpm, 444,000 x g
367087	MLA-80 Rotor, Fixed Angle, 8 x 8.0 mL, 80,000 rpm, 444,000 x g
367100	MLN-80 Rotor Pkg, Near-Vertical, 8 x 8.0 mL, 80,000 rpm, 389,000 x g
367280	MLS-50 Rotor Pkg, Swinging Bucket, 4 x 5.0 mL, 50,000 rpm, 268,000 x g
367279	MLS-50 Rotor, Swinging Bucket, 4 x 5.0 mL, 50,000 rpm, 268,000 x g
343837	TLA-100 Rotor Pkg, Fixed Angle, 20 x 0.2 mL, 100,000 rpm, 436,000 x g
343840	TLA-100 Rotor, Fixed Angle, 20 x 0.2 mL, 100,000 rpm, 436,000 x g
349490	TLA-100.3 Rotor Pkg, Fixed Angle, 6x3.5mL, 100,000rpm, 541,000 x g
349481	TLA-100.3 Rotor, Fixed Angle, 6 x 3.5 mL, 100,000 rpm, 541,000 x g
366735	TLA-110 Rotor Pkg, Fixed Angle, 8 x 5.1 mL, 110,000 rpm, 657,000 x g
366730	TLA-110 Rotor, Fixed Angle, 8 x 5.1 mL, 110,000 rpm, 657,000 x g
357655	TLA-120.1 Rotor Pkg, Fixed Angle, 14x0.5 mL, 120,000 rpm, 627,000 x g
362224	TLA-120.1 Rotor, Fixed Angle, 14 x 0.5 mL, 120,000 rpm, 627,000 x g
357656	TLA-120.2 Rotor Pkg, Fixed Angle, 10x2.0 mL, 120,000 rpm, 627,000 x g
362046	TLA-120.2 Rotor, Fixed Angle, 10 x 2.0 mL, 120,000 rpm, 627,000 x g
366725	TLA-55 Rotor Pkg, Fixed Angle, 12 x 1.5 mL, 55,000 rpm, 186,000 x g
366720	TLA-55 Rotor, Fixed Angle, 12 x 1.5 mL, 55,000 rpm, 186,000 x g
357614	TLN-100 Rotor Pkg, 8 x 3.9 mL, 100,000 rpm, 450,000 x g
357683	TLN-120 Rotor Pkg, 8 x 1.2 mL, 120,000 rpm, 585,000 x g
346134	TLS-55 Rotor Pkg, Swinging Bucket, 4 x 2.2 mL, 55,000 rpm, 259,000 x g
346936	TLS-55 Rotor, Swinging Bucket, 4 x 2.2 mL, 55,000 rpm, 259,000 x g

355919	Adapter, Delrin, Tube, 11 mm dia (qty. 6)
360951	Adapter, Delrin, Tube, 11 mm dia (qty. 8)
393238	Adapter, Delrin, Tube, 11 mm dia (qty. 8)
303401	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
303402	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
303313	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
358614	Adapter, Delrin, Tube, 5 mm dia (qty. 4)
358615	Adapter, Delrin, Tube, 7 x 20 mm (qty. 4)
303376	Adapter, Delrin, Tube, 8 mm dia (qty. 1)
356860	Adapter, Split, Delrin, Tube, 5 mm dia (qty. 2 halves)
358153	Adapter, Tube, Conical, 13 mm dia (qty. 6)
346256	Cap Assembly, Aluminum, Tube, 13 mm dia (qty. 1)
338907	Cap Assembly, Aluminum, Tube, 16 mm dia (qty. 1)
303624	Cap Assembly, Aluminum, Tube, 8 mm dia (qty. 1)
341968	Cap Assembly, Titanium, Tube, 13.4 mm dia (qty. 1)
362198	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
342883	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
349289	Spacer, Aluminum, Tube, 16 mm dia (qty. 1)
342695	Spacer, Aluminum, Tube, 16 mm dia (qty. 1)
361061	Spacer, Aluminum, Tube, 8 mm dia (qty. 1)
367101	Spacer, Cap, Aluminum, Tube, 16 mm dia (qty. 1)
362307	Spacer, Floating, Delrin, Tube, 13 mm dia (qty. 8)
355535	Spacer, Floating, Noryl, Tube, 13 mm dia (qty. 1)
360270	Spacer, Floating, Noryl, Tube, 13 mm dia (qty. 8)
345828	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
367310	Spacer, Floating, Polyetherimide, Tube, 11 mm dia (qty. 1)
361678	Spacer, Floating, Ultem, Tube, 13 mm dia (qty. 2)
344674	Spacer, Noryl, Tube, 11 mm dia (qty. 1)
355937	Spacer, Noryl, Tube, 13 mm dia (qty. 6)
367313	Spacer, Noryl, Tube, 16 mm dia (qty. 1)
367094	Spacer, Noryl, Tube, 16 mm dia (qty. 1)
367312	Spacer, Noryl, Tube, 16 mm dia (qty. 1)
344676	Spacer, Noryl, Tube, 16 mm dia (qty. 1)
361670	Spacer, Noryl, Tube, 16 mm dia (qty. 2)
344636	Spacer, Polyetherimide, Tube, 11 mm dia (qty. 1)
361676	Spacer, Ultem, Tube, 13 mm dia (qty. 2)

355603	Bottle, with Cap Assembly, Polycarbonate, 10.4 mL, 16 x 76 mm (qty. 6)
357332	g-Max Kit, Quick-Seal®, Polypropylene, 4.2 mL, 16 x 38 mm (qty 50)
357334	Tube Kit, 6.3 mL Tubes, Types 80 Ti, 70.1 Ti, 65, 50 Ti, 50
361627	Tube, OptiSeal™, Polypropylene, 3.3 mL, 13 x 33 mm (qty. 56)
361621	Tube, OptiSeal™, Polypropylene, 4.7 mL, 13 x 48 mm (qty. 56)
361623	Tube, OptiSeal™, Polypropylene, 8.9 mL, 16 x 60 mm (qty. 56)
358647	Tube, Quick-Seal®, konical™, Polypropylene, 3.2 mL, 13 x 51 mm (qty 50)
361082	Tube, Quick-Seal®, Polypropylene, 1.2 mL, 8 x 35 mm (qty. 50)
344624	Tube, Quick-Seal®, Polypropylene, 1.5 mL, 11 x 25 mm (qty. 50)
344622	Tube, Quick-Seal®, Polypropylene, 10 mL, 16 x 67 mm (qty. 50)
342413	Tube, Quick-Seal®, Polypropylene, 13.5 mL, 16 x 76 mm (qty. 50)
345829	Tube, Quick-Seal®, Polypropylene, 2 mL, 13 x 25 mm (qty. 50)
344625	Tube, Quick-Seal®, Polypropylene, 2.0 mL, 11 x 32 mm (qty. 50)
349621	Tube, Quick-Seal®, Polypropylene, 3.5 mL, 13 x 32 mm (qty. 50)
358980	Tube, Quick-Seal®, Polypropylene, 3.9 mL, 13 x 38 mm (qty. 50)
356562	Tube, Quick-Seal®, Polypropylene, 4.2 mL, 16 x 38 mm (qty. 50)
362248	Tube, Quick-Seal®, Polypropylene, 5.1 mL, 13 x 51 mm (qty. 50)
345830	Tube, Quick-Seal®, Polypropylene, 6.3 mL, 16 x 45 mm (qty. 50)
344621	Tube, Quick-Seal®, Polypropylene, 8 mL, 16 x 57 mm (qty. 50)
344322	Tube, Quick-Seal®, Ultra-Clear™, 13.5 mL, 16 x 76 mm (qty. 50)
342303	Tube, Thickwall, Cellulose Propionate, 230 µL, 7 x 21 mm (qty. 100)
343778	Tube, Thickwall, Polycarbonate, 1 mL, 11 x 34 mm (qty. 100)
355630	Tube, Thickwall, Polycarbonate, 10 mL, 16 x 76 mm (qty. 25)
343775	Tube, Thickwall, Polycarbonate, 230 µL, 7 x 21 mm (qty. 100)
362305	Tube, Thickwall, Polycarbonate, 3.2 mL, 13 x 56 mm (qty. 50)
349622	Tube, Thickwall, Polycarbonate, 3.5 mL, 13 x 51 mm (qty. 25)
355645	Tube, Thickwall, Polycarbonate, 4 mL, 13 x 64 mm (qty. 25)
343776	Tube, Thickwall, Polycarbonate, 500 µL, 8 x 34 mm (qty. 100)
355647	Tube, Thickwall, Polycarbonate, 6.5 mL, 16 x 64 mm (qty. 25)
343622	Tube, Thickwall, Polyethylene, 175 µL, 5 x 20 mm (qty. 100)
347287	Tube, Thickwall, Polypropylene, 1.0 mL, 11 x 34 mm (qty. 100)
355646	Tube, Thickwall, Polypropylene, 10 mL, 16 x 64 mm (qty. 25)
355640	Tube, Thickwall, Polypropylene, 10 mL, 16 x 76 mm (qty. 25)
343621	Tube, Thickwall, Polypropylene, 200 µL, 7 x 21 mm (qty. 100)
362333	Tube, Thickwall, Polypropylene, 3.2 mL, 13 x 56 mm (qty. 50)
349623	Tube, Thickwall, Polypropylene, 3.5 mL, 13 x 51 mm (qty. 25)
355644	Tube, Thickwall, Polypropylene, 4 mL, 13 x 64 mm (qty. 25)
343777	Tube, Thickwall, Polypropylene, 500 µL, 8 x 34 mm (qty. 100)
358119	Tube, Thinwall, konical™, Polypropylene, 3 mL, 13 x 51 mm (qty 50)
326814	Tube, Thinwall, Polypropylene, 13.5 mL, 16 x 76 mm (qty. 50)
342630	Tube, Thinwall, Polypropylene, 175 µL, 5 x 20 mm (qty. 100)
347357	Tube, Thinwall, Polypropylene, 2.2 mL, 11 x 35 mm (qty. 50)
326819	Tube, Thinwall, Polypropylene, 5.0 mL, 13 x 51 mm (qty. 50)
326820	Tube, Thinwall, Polypropylene, 6.5 mL, 13 x 64 mm (qty. 50)
344085	Tube, Thinwall, Ultra-Clear™, 13.5 mL, 16 x 76 mm (qty. 50)
344091	Tube, Thinwall, Ultra-Clear™, 2 mL, 8 x 49 mm (qty. 50)
347356	Tube, Thinwall, Ultra-Clear™, 2.2 mL, 11 x 35 mm (qty. 50)
344092	Tube, Thinwall, Ultra-Clear™, 3.0 mL, 13 x 32 mm (qty. 50)
344093	Tube, Thinwall, Ultra-Clear™, 4 mL, 13 x 41 mm (qty. 50)
344057	Tube, Thinwall, Ultra-Clear™, 5 mL, 13 x 51 mm (qty. 50)

344088	Tube, Thinwall, Ultra-Clear™, 6.5 mL, 13 x 64 mm (qty. 50)
344090	Tube, Thinwall, Ultra-Clear™, 800 µL, 5 x 41 mm (qty. 50)
357448	Tube, with Snap-On Cap, Polypropylene, 1.5 mL, 11 x 38 mm, Natural (qty. 500)
