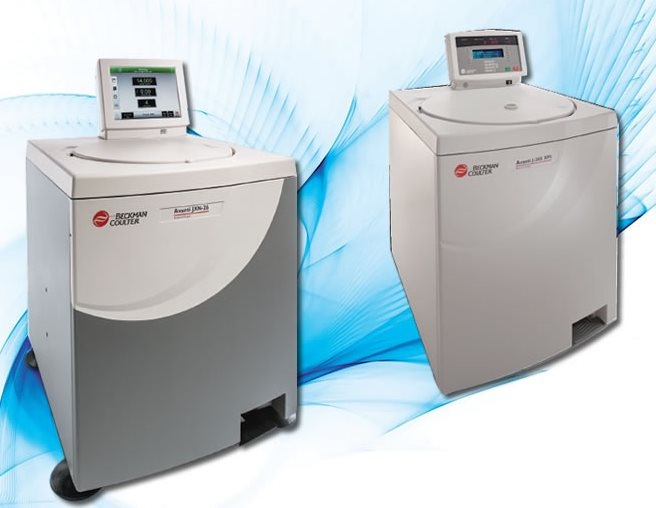

Avanti JXN-26 nagykapacitású, nagysebességú laboálló centrifuga
Work Fast. Work Safe. Work Remotely.
Whatever your application, Avanti Series centrifuges are the perfect choice. They are easy-to-use and they run quieter, cooler, and use less energy than traditional centrifuges.
Flexibility reaches a whole new level with the MobileFuge remote application for Avanti centrifuges. Users can easily monitor and control centrifuge functions via computer, using Virtual Network Computing (VNC) software, or mobile device using the custom MobileFuge app available for Apple® iOS and Android™ devices. Whether you are across the lab or across the campus, you can always keep an eye on your centrifuge. Work has never been so flexible.
Whatever your application, Avanti Series centrifuges are the perfect choice. They are easy-to-use and they run quieter, cooler, and use less energy than traditional centrifuges.
Flexibility reaches a whole new level with the MobileFuge remote application for Avanti centrifuges. Users can easily monitor and control centrifuge functions via computer, using Virtual Network Computing (VNC) software, or mobile device using the custom MobileFuge app available for Apple® iOS and Android™ devices. Whether you are across the lab or across the campus, you can always keep an eye on your centrifuge. Work has never been so flexible.
Increase your productivity.
Ergonomic design
- Low work surface height for easier installation and unloading of rotors
- Foot pedal for hands-free door operation
- Door swings up and out of the way for easy access to the rotor chamber
- Large digital readouts make operation simpler
Gain flexibility with MobileFuge
- Set and monitor run parameters and email diagnostic results
- Control and monitor the centrifuge from your Apple® iOS and Android™ device with MobileFuge
- Get alerts and diagnostics remotely
Intuitive interface
- User-friendly, large LCD screen
- View set and actual run conditions simultaneously
- Select rotor by name, not by arcane number code
- 12 accel/13 decel rates
- Delay start
- Run times to 99:59, Hold, and Ω2t integrator for applications that require exquisite reproducibility
Safe and sustainable
- Friction Reduction System (FRS) allows quicker, quieter, and cooler runs
- Uses less energy than traditional centrifuges
- BioSafe* options
- Dynamic rotor inertia check
- High-torque, Switched Reluctance (SR) drive cycle shortens cycle times
Advanced, easy-to-use data management
- Perfect for shared labs or GMP environments
- On-screen text sensitive "help" screen
- Up to 1000 user-defined programs
- Set up and store numerous protocols
- Password protection for up to 50 unique user profiles
- Network multiple instruments
- Data logging and real-time run graphing
Simply get results.
High throughput and high productivity are standard fare for every Beckman Coulter centrifuge and the Avanti JXN Series is no exception. It’s more than capable of delivering solutions for shared labs, GMP environments, networked instruments and more.
With the Avanti JXN Series centrifuges, you will not only manage your daily laboratory challenges, but get higher performance, better BioSafety,* and advanced levels of networking. With the MobileFuge app, you can access modern data and user management, remote monitoring, control and error handling via networks, and mobile devices.
Service You Can Count On
Your investment is protected with Beckman Coulter Life Sciences’ service and support. Wherever you are in the world, Beckman Coulter delivers service, troubleshooting, and maintenance when you need it. Highly knowledgeable service professionals solve your problems quickly and efficiently—so you can focus on critical tasks.
| UNSPSC: | 41103905 |
| Height: | 86 cm (34 in); with door open 149 cm (58.5 in) |
| Width: | 71 cm (28 in) |
| Depth: | 86 cm (34 in) |
| Weight: | 290 kg (640 lb.) |
| Friction Reduction System (FRS): | A mechanical rotary vane pump reduces the chamber pressure for improved performance. |
| Max Capacity Volume Range: | 6 liters |
| Max Speed: | 26,000 rpm |
| Maximum Heat Dissipation into Room under Steady-State Conditions: | 1.5 kW (5120 Btu/hr) (JA 20 rotor running at 20,000 rpm at 4 degrees C |
| Noise level at max. speed (approx.): | 57 dBA (JA 30.50 Ti rotor with chamber precooled and running at 26,000 rpm). |
| Refrigeration System: | Non-CFC, non-ozone depleting refrigerant |
| Rotor ID: | Automatic |
| Set Temperature: | -10° C to +40° C (in 1° C increments) |
| Set Time: | 99:59 |
| Speed Control: | ± 10 rpm of set speed or 0.1%, whichever is greater |
| Speed Range: | 500 to 26,000 rpm or equivalent RCF |
| Temperature Control: | ± 2° C of chamber temperature (after equilibration) |
| Zonal Capability: | Yes |
| Single Tube Sample Volume Range: | 1.5 - 1,000 mL |
| Ambient Temperature Range: | 16° C to 38° C |
| Clearances Required: | 7.6 cm (3.0 in) sides; 16.0 cm (6.25 in) rear |
| Door: | 6.1 cm (2.4 in) thick plastic resin with steel plate |
| Humidity Restrictions: | < 80% (noncondensing) |
| Pollution Degree: | 2 |
| Rotor Chamber Diameter: | 51.3 cm (20 in) |
| Time -- Actual Display: | Real-time run monitoring, time elapsed, time remaining, hold. |
| Maximum Force at r max (g): | 81,770 x g |
| Acceleration: | 11 profiles |
| Deceleration: | 12 profiles |
| 369681 | J-LITE® JLA-10.500 Rotor, Fixed Angle, Aluminum, Biosafety Liquid Canisters, 6 x 500 mL, 10,000 rpm, 18,600 x g |
| 363930 | J-LITE® JLA-16.250 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 6 x 250 mL, 16,000 rpm, 38,400 x g |
| 363934 | J-LITE® JLA-16.250 Rotor, Single Lock, 6x250mL, 16,000 rpm, 38,400 x g |
| 363688 | J-LITE® JLA-8.1000 Rotor, Fixed Angle, Aluminum, 6 x 1,000 mL, 8,000 rpm, 15,970 x g |
| 969328 | J-LITE® JLA-8.1000 Rotor, Fixed Angle, Aluminum, 6 x 1,000 mL, 8,000 rpm, 15,970 x gwith Polycarbonate Bottles |
| 969329 | J-LITE® JLA-8.1000 Rotor, Fixed Angle, Aluminum, 6 x 1,000 mL, 8,000 rpm, 15,970 x gwith Polypropylene Bottles |
| 366754 | J-LITE® JLA-9.1000 Rotor, Fixed Angle, Aluminum, 4 x 1,000 mL, 9,000 rpm, 16,800 x g |
| 969330 | J-LITE® JLA-9.1000 Rotor, Fixed Angle, Aluminum, 4 x 1,000 mL, 9,000 rpm, 16,800 x gwith Polycarbonate Bottles |
| 969331 | J-LITE® JLA-9.1000 Rotor, Fixed Angle, Aluminum, 4 x 1,000 mL, 9,000 rpm, 16,800 x gwith Polypropylene Bottles |
| 369687 | JA-10 Rotor, Fixed Angle, Aluminum, 6 x 500 mL, 10,000 rpm, 17,700 x g |
| 360992 | JA-12 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 12 x 50 mL, 12,000 rpm, 23,200 x g |
| 360993 | JA-12 Rotor, Single Lock Lid, 12 x 50 mL, 12,000 rpm, 23,200 x g |
| 339247 | JA-14 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 6 x 250 mL, 14,000 rpm, 30,100 x g |
| B19956 | JA-14.50 Rotor Assembly |
| B19955 | JA-14.50 Rotor Assembly, Bio-Contained |
| 369691 | JA-17 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 14 x 50 mL, 17,000 rpm, 39,800 x g |
| 369679 | JA-18 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 10 x 100 mL, 18,000 rpm, 47,900 x g |
| 347824 | JA-18.1 Rotor, Fixed Angle, Aluminum, 24 x 1.8 mL, 18,000 rpm, 42,100 x g |
| 334831 | JA-20 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 8 x 50 mL, 20,000 rpm, 48,400 x g |
| 342095 | JA-20.1 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 32 x 15 mL, 20,000 rpm, 51,500 x g |
| 334845 | JA-21 Rotor, Fixed Angle, 18 x 10 mL, 21,000 rpm, 50,400 x g |
| 363050 | JA-25.15 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 24 x 15 mL, 25,000 rpm, 74,200 x g |
| 363054 | JA-25.15 Rotor, Single Lock Lid, 24 x 15 mL, 25,000 rpm, 74,200 x g |
| 363058 | JA-25.50 Rotor, Fixed Angle, Aluminum, Biosafety Lid, 8 x 50 mL, 25,000 rpm, 75,600 x g |
| 363055 | JA-25.50 Rotor, Single Lock Lid, 8 x 50 mL, 25,000 rpm, 75,600 x g |
| 363420 | JA-30.50 Ti Rotor, Fixed Angle, Titanium, Biosafety Lid, 8 x 50 mL, 30,000 rpm, 108,860 x g |
| 363421 | JA-30.50 Ti Rotor, Single Lock Lid, 8 x 50 mL, 30,000 rpm, 108,860 x g |
| 357521 | JCF-Z Continuous Flow Rotor, Large Pellet Core, Titanium, 1,250 mL, 20,000 rpm, 39,900 xg |
| 357544 | JCF-Z Continuous Flow Rotor, Small Pellet Core, Titanium, 240 mL, 20,000 rpm, 36,300 x g |
| 335140 | JCF-Z Continuous Flow Rotor, Standard Pellet Core, Titanium, 660 mL, 20,000 rpm, 39,900 x g |
| 354005 | JCF-Z Reorienting Gradient Rotor, Titanium, 1,750 mL, 20,000 rpm, 39,900 x g |
| 346963 | JS-13.1 Rotor with Carrying Handle, Swinging-Bucket, Aluminum, 6 x 50 mL, 13,000 rpm, 26,500 x g |
| 362396 | JS-24.15 Rotor with Buckets, Swinging-Bucket, Aluminum, 6 x 15 mL, 24,000 rpm, 110,500 x g |
| 360743 | JS-24.38 Rotor with Buckets, Swinging-Bucket, Aluminum, 6 x 38.5 mL, 24,000 rpm, 103,900 x g |
| 339086 | JS-4.0 Rotor with Buckets, Swinging-Bucket, Biosafety, Unshielded, Aluminum, 4 x 1000mL, 4,000 rpm, 4,050 x g |
| 362734 | JS-4.3 Rotor with Buckets, Swinging-Bucket, Biosafety Lid, Stainless Steel, 4 x 750 mL, 4,300 rpm, 4,220 x g |
| 361250 | JS-4.3 Rotor, Swinging-Bucket, 4 x 750 mL, 4,300 rpm, 4,220 x g |
| 368690 | JS-5.3 AllSpin Rotor & Buckets, Swinging-Bucket, 4x500mL, 5,300 rpm, 6,870 x g |
| 969314 | JS-5.3 Rotor with Microplate Kit, Swinging-Bucket, Aluminum, 24 x 96-Well Plates, 5,300 rpm, 6,130 x g |
| 336380 | JS-7.5 Rotor with Buckets, Swinging-Bucket, Aluminum, 4 x 250 mL, 7,500 rpm, 10,400 x g |
| 362212 | JS-7.5 Rotor, No Buckets, 4 x 250 mL, 7,500 rpm, 10,400 x g |
