Optima™ XPN

The premier ultracentrifuge.

Look no further – you’ve found the ultra of ultracentrifuges: the Optima XPN. No other floor-model preparative ultracentrifuge offers this level of design, functionality, and performance. Possessing all of the attributes of our entry-level model, the XE, the Optima XPN boasts additional enhancements that will simplify use, optimize control and security, and increase productivity. You’ll applaud its intelligent user interface, networking and remote control capabilities, and energy efficiency. And of course, our total system design backed by our exclusive rotors, labware, and unparalleled service.

Available in 100k, 90k, and 80k RPM configurations.
Part numbers vary by geography. Contact your local sales representative for specific order information.

Árajánlatot, információt kérek!

Hot topic: Virus concentration from aqueous solutions by ultracentrifugation

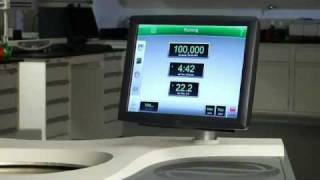

Large Touch-screen Display
Easy to read and navigate. Viewable from across the lab. Intuitive graphical interface with on-screen help. Multilingual software for error-free operation.

Improved Power Tolerance
Maintains runs during power fluctuations. Handles a wider tolerated range of 180 VAC to 264 VAC. Tracks power interruption data to convey if parameters remained within an acceptable range.

Security and tracking features
Manage rotor life by serial number. Track detailed usage history. Password protection and electronic signatures help you maintain chain of custody and compliance.

Remote Monitoring and Control
Saves time. Start, stop, and monitor from computer or smart phone. Receive diagnostic alerts via e-mail.

Real-time Run Graphing
Plots speed and temperature over time, allowing you to track and record progress.

Powerful On-board Simulation and Calculation Tools
Saves time and samples. Proprietary software optimizes protocols before running to ensure maximum efficiency. Quickly perform common calculations and conversions.

Energy Efficient
Regenerative braking returns energy to local circuit reducing utility costs. Highly efficient thermoelectric cooling results in lower power consumption. Uses the same amount of power as a 60-watt light bulb while idling.

Quiet-drive Technology
Designed for lowest drive noise – this is the quietest floor model on the market. Operates at less than 51dBA.

Total System Design
The Optima XPN, its rotors and its labware are designed, manufactured, and tested as an integrated system to ensure optimal performance and safety for your lab. Learn More

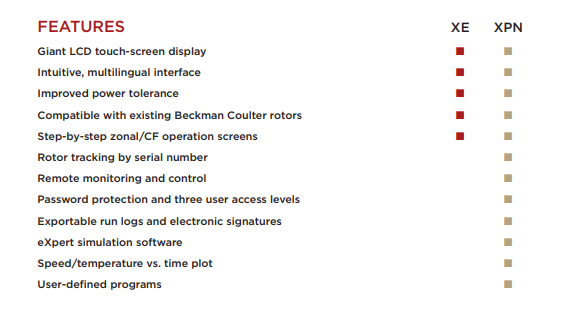

XEXPN

UNSPSC:	41103907
Height:	125.7 cm (49.5 in)
Width:	94 cm (37 in)
Depth:	68.1 cm (26.8 in)
Weight:	485 kg (1068 lb)
Approximate Acceleration Time:	10 acceleration profiles
Approximate Deceleration Time:	11 deceleration profiles
Drive Cooling:	Air-cooled
Electrical Requirements:	200–240V, 30 A, 50/60 Hz
g Force:	694,000 x g
Max Speed:	90,000 rpm
Maximum Heat Dissipation into Room under Steady-State Conditions:	3400 BTU/hr (1.0 kW)
Noise Level 1 Meter in Front of Centrifuge:
Refrigeration System:	Thermoelectric—no CFCs, ODCs
Set Speed:	1,000 to 90,000 rpm in 100-rpm increments
Set Temperature:	0 to 40° C in 1° C increments
Set Time:	Up to 999 hours 59 minutes
Speed Control:	±2 rpm of set speed (above 1,000 rpm)
Temperature Control:	±0.5° C of set temperature ±0.8°C when using SW 32 swinging bucket rotor
User-Settable Programs:	1,000 with up to 30 steps each
Ambient Temperature Range:	10° C to 35° C
Humidity Restrictions:	<80% at <35° C (non-condensing)
Pollution Degree:	2
User-Defined Programs:	1,000 with up to 30 steps each

350700	CF-32 Ti Basic Rotor Kit, 430 mL, 32,000 rpm, 102,000 x g
A19656	CF-32 Ti Rotor Installation Kit for Optima, 60 Hz
365898	NVT™ 100 Rotor Package, Near-Vertical, Titanium, 8 x 5.1mL, 100,000 rpm, 750,000 x g
362755	NVT™ 65 Rotor Assy, Near-Vertical, 8x13.5 mL, 65,000 rpm, 402,000 x g
361073	NVT™ 65.2 Rotor Pkg, Near-Vertical, 16x5.1 mL, 65,000 rpm, 416,000 x g
362752	NVT™ 90 Rotor Pkg, Near-Vertical, 8 x 5.1 mL, 90,000 rpm, 645,000 x g
342204	SW 28 Ti Rotor Package, Swinging Bucket, Aluminum, 6 x 38.5 mL, 28,000 rpm, 141,000 xg
342207	SW 28 Ti Rotor, Swinging Bucket, Aluminum, 6 x 38.5 mL, 28,000 rpm, 141,000 x g
342216	SW 28.1 Rotor, Swinging Bucket, 6 x 17 mL, 28,000 rpm, 150,000 x g
369650	SW 32 Ti Rotor, Swinging Bucket, 32,000 rpm, 6 x 38.5 mL, 175,000 x g
369651	SW 32.1 Ti Rotor, Swinging Bucket, 6 x 17 mL, 32,000 rpm, 187,000 x g
331302	SW 40 Ti Rotor, Swinging Bucket, 6 x 14 mL, 40,000 rpm, 285,000 x g
331362	SW 41 Ti Rotor, Swinging Bucket, 6 x 13.2 mL, 41,000 rpm, 288,000 x g
342194	SW 55 Ti Rotor, Swinging Bucket, 6 x 5 mL, 55,000 rpm, 368,000 x g
335649	SW 60 Ti Rotor, Swinging Bucket, 6 x 4 mL, 60,000 rpm, 485,000 x g
969312	Ti-15 Zonal Rotor with Standard Core, 1,675mL, 32,000 rpm, 102,000 x g
363013	Type 100 Ti Rotor, Fixed Angle, 8 x 6.8 mL, 100,000 rpm, 802,400 x g
325620	Type 19 Rotor, Fixed Angle, 6 x 250 mL, 19,000 rpm, 53,900 x g
347261	Type 25 Rotor, Fixed Angle, 100 x 1.0 mL, 25,000 rpm, 92,500 x g
343007	Type 42.2 Ti Rotor Package, Fixed Angle, Titanium, 72 x 0.230 mL, 42,000 rpm, 223,000 xg
339160	Type 45 Ti Rotor, Fixed Angle, Titanium, 6 x 94 mL, 45,000 rpm, 235,000 x g
337901	Type 50.2 Ti Rotor, Fixed-Angle, Titanium, 12 x 39 mL, 50,000 rpm, 302,000 x g
347299	Type 50.4 Ti Rotor, Fixed Angle, Titanium, 44 x 6.5 mL, 50,000 rpm, 312,000 x g
337922	Type 70 Ti Rotor, Fixed Angle, 8 x 39 mL, 70,000 rpm, 504,000 x g
342184	Type 70.1 Ti Rotor, Fixed Angle, 12 x 13.5 mL, 70,000 rpm, 450,000 x g
355530	Type 90 Ti Rotor, Fixed Angle, 8 x 13.5 mL, 90,000 rpm, 694,000 x g
362758	VTi 50 Rotor Pkg, Vertical Tube, 8 x 39 mL, 50,000 rpm, 242,000 x g
362759	VTi 65.1 Rotor Pkg, Vertical Tube, 8x13.5 mL, 65,000 rpm, 402,000 x g
362754	VTi 65.2 Rotor Pkg, Vertical Tube, 16x5.1 mL, 65,000 rpm, 416,000 x g
362751	VTi 90 Rotor Pkg, Vertical Tube, 8 x 5.1 mL, 90,000 rpm, 645,000 x g

303402	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
303313	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
303401	Adapter, Delrin, Tube, 13 mm dia (qty. 1)
303376	Adapter, Delrin, Tube, 8 mm dia (qty. 1)
303823	Adapter, Delrin, Tube, 8 mm dia (qty. 1)
356860	Adapter, Split, Delrin, Tube, 5 mm dia (qty. 2 halves)
358153	Adapter, Tube, Conical, 13 mm dia (qty. 6)
358156	Adapter, Tube, Conical, 25 mm dia (qty. 6)
358155	Adapter, Tube, Conical, 25.0 mm dia (qty. 6)
346256	Cap Assembly, Aluminum, Tube, 13 mm dia (qty. 1)
330860	Cap Assembly, Aluminum, Tube, 13.4 mm dia (qty. 1)
338907	Cap Assembly, Aluminum, Tube, 16 mm dia (qty. 1)
338905	Cap Assembly, Aluminum, Tube, 38 mm dia (qty. 1)
330901	Cap Assembly, Aluminum, Tube, 38 mm dia (qty. 1)
303658	Cap Assembly, Aluminum, Tube, 8 mm dia (qty. 1)
303624	Cap Assembly, Aluminum, Tube, 8 mm dia (qty. 1)
341968	Cap Assembly, Titanium, Tube, 13.4 mm dia (qty. 1)
362198	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
342417	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
342883	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
349289	Spacer, Aluminum, Tube, 16 mm dia (qty. 1)
342695	Spacer, Aluminum, Tube, 16 mm dia (qty. 1)
362202	Spacer, Aluminum, Tube, 16 mm dia (qty. 1)
362204	Spacer, Aluminum, Tube, 25 mm dia (qty. 1)
344389	Spacer, Delrin, Tube, 13 mm dia (qty. 1)

345827	Spacer, Floating, Noryl, Bell-top Tube, 13 mm dia (qty. 1)
355535	Spacer, Floating, Noryl, Tube, 13 mm dia (qty. 1)
360270	Spacer, Floating, Noryl, Tube, 13 mm dia (qty. 8)
349900	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
355579	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
345828	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
349901	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
356571	Spacer, Floating, Noryl, Tube, 16 mm dia (qty. 1)
355536	Spacer, Floating, Noryl, Tube, 25 mm dia (qty. 1)
361678	Spacer, Floating, Ultem, Tube, 13 mm dia (qty. 2)
344674	Spacer, Noryl, Tube, 11 mm dia (qty. 1)
365470	Spacer, Noryl, Tube, 13 mm dia (qty. 8)
344676	Spacer, Noryl, Tube, 16 mm dia (qty. 1)
361670	Spacer, Noryl, Tube, 16 mm dia (qty. 2)
343448	Spacer, Noryl, Tube, 25 mm dia (qty. 1)
342697	Spacer, Titanium, Tube, 38 mm dia (qty. 1)
361676	Spacer, Ultem, Tube, 13 mm dia (qty. 2)
361669	Spacer, Ultem, Tube, 25 mm dia (qty. 2)
392833	Spacer, Ultem, Tube, 25 mm dia (qty. 2)

334205	Bottle Assembly, Polypropylene, 250 mL, 60 x 120 mm (qty. 1)
355622	Bottle Assy, PC, 70 mL, 38 x 102mm, 1-1/2 x 4in, Aluminum Cap (qty 6)
355651	Bottle, Polycarbonate, 10.4 mL, 16 x 76 mm (qty. 25)
355655	Bottle, Polycarbonate, 70 mL, 38 x 102 mm (qty. 6)
355627	Bottle, Polypropylene, 250 mL, 60 x 120 mm (qty. 6)
355603	Bottle, with Cap Assembly, Polycarbonate, 10.4 mL, 16 x 76 mm (qty. 6)
355618	Bottle, with Cap Assembly, Polycarbonate, 26.3mL, 25 x 89mm, 1 x 3-1/2 in (qty 6)
357344	g-Max Kit, Quick-Seal®, Polypropylene, 15 mL, 25 x 38 mm (qty 50)
357343	g-Max Kit, Quick-Seal®, Polypropylene, 15 mL, 25 x 38 mm (qty 50)
357327	g-Max Kit, Quick-Seal®, Polypropylene, 2.0 mL, 13 x 25 mm (qty 50)
357346	g-Max Kit, Quick-Seal®, Polypropylene, 27 mL, 25 x 64 mm (qty 50)
363961	g-Max Kit, Quick-Seal®, Polypropylene, 3.5 mL, 13 x 32 mm (qty 50)
357332	g-Max Kit, Quick-Seal®, Polypropylene, 4.2 mL, 16 x 38 mm (qty 50)
363960	g-Max Kit, Quick-Seal®, Polypropylene, 5.1 mL, 13 x 51 mm (qty 50)
357334	Tube Kit, 6.3 mL Tubes, Types 80 Ti, 70.1 Ti, 65, 50 Ti, 50
357329	Tube Kit, for 2 mL Tubes, Type 50.4 Ti Rotor
357326	Tube Kit, for 2 mL Tubes, VTi 65.2 Rotor
363962	Tube Kit, for 2.0 mL Tubes, Type 100 Ti Rotor
357335	Tube Kit, for 6.3 mL Tubes, VTi 65.1 Rotor
357337	Tube Kit, for 8 mL Tubes, VTi 65.1 Rotor
357323	Tube Kit, Polypropylene, Quick-Seal, 1.5 mL, 11 x 25 mm, qty. 50
357324	Tube Kit, Polypropylene, Quick-Seal, 2 mL, 11 x 32 mm, qty. 50
357325	Tube Kit, Polypropylene, Quick-Seal, 2 mL, 13 x 25 mm, qty. 50
362181	Tube, OptiSeal™, Polypropylene, 11.2 mL, 16 x 67 mm (qty. 56)
361627	Tube, OptiSeal™, Polypropylene, 3.3 mL, 13 x 33 mm (qty. 56)
361625	Tube, OptiSeal™, Polypropylene, 32.4 mL, 26 x 77 mm (qty. 56)
362183	Tube, OptiSeal™, Polypropylene, 36.2 mL, 25 x 87 mm, (qty. 56)
361621	Tube, OptiSeal™, Polypropylene, 4.7 mL, 13 x 48 mm (qty. 56)
362185	Tube, OptiSeal™, Polypropylene, 4.9 mL, 13 x 51 mm (qty. 56)
361623	Tube, OptiSeal™, Polypropylene, 8.9 mL, 16 x 60 mm (qty. 56)
358655	Tube, Quick-Seal®, konical™, Polypropylene, 1.3 mL, 11 x 35 mm (qty 50)
358653	Tube, Quick-Seal®, konical™, Polypropylene, 12.5 mL, 16 x 102 mm (qty 50)
358654	Tube, Quick-Seal®, konical™, Polypropylene, 23 mL, 25 x 76 mm (qty 50)
358651	Tube, Quick-Seal®, konical™, Polypropylene, 28 mL, 25 x 83 mm (qty 50)
358648	Tube, Quick-Seal®, konical™, Polypropylene, 3 mL, 11 x 60 mm (qty 50)
358647	Tube, Quick-Seal®, konical™, Polypropylene, 3.2 mL, 13 x 51 mm (qty 50)
358650	Tube, Quick-Seal®, konical™, Polypropylene, 4 mL, 14 x 48 mm (qty 50)
358649	Tube, Quick-Seal®, konical™, Polypropylene, 8 mL, 14 x 89 mm (qty 50)
358652	Tube, Quick-Seal®, konical™, Polypropylene, 8.5 mL, 25 x 38 mm (qty 50)
345831	Tube, Quick-Seal®, Polypropylene, 1 mL, 8 x 51 mm (qty. 50)
344624	Tube, Quick-Seal®, Polypropylene, 1.5 mL, 11 x 25 mm (qty. 50)
344622	Tube, Quick-Seal®, Polypropylene, 10 mL, 16 x 67 mm (qty. 50)
345776	Tube, Quick-Seal®, Polypropylene, 100 mL, 38 x 102 mm, qty. 25
342413	Tube, Quick-Seal®, Polypropylene, 13.5 mL, 16 x 76 mm (qty. 50)
343664	Tube, Quick-Seal®, Polypropylene, 15 mL, 25 x 38 mm (qty. 50)
356291	Tube, Quick-Seal®, Polypropylene, 17 mL, 16 x 10 mm (qty. 50)
345829	Tube, Quick-Seal®, Polypropylene, 2 mL, 13 x 25 mm (qty. 50)
344625	Tube, Quick-Seal®, Polypropylene, 2.0 mL, 11 x 32 mm (qty. 50)
343665	Tube, Quick-Seal®, Polypropylene, 27 mL, 25 x 64 mm (qty. 50)
349621	Tube, Quick-Seal®, Polypropylene, 3.5 mL, 13 x 32 mm (qty. 50)

WORKFLOW-K

Optima™ XPN

Hot topic: Virus concentration from aqueous solutions by ultracentrifugation

Virus concentration from aqueous solutions by ultracentrifugation

Optima MAX Series - Tabletop Ultracentrifuge

Optima X Series Ultracentrifuges - An Overview

Optima XE and XPN Safety and Reliability

Termékajánló

Forgalmazott termékeink gyártói - keressen gyártó szerint a logóra kattintva

355870	Tube, Quick-Seal®, Polypropylene, 3.5 mL, 14 x 25 mm (qty. 50)
344623	Tube, Quick-Seal®, Polypropylene, 33 mL, 25 x 83 mm (qty 50)
342414	Tube, Quick-Seal®, Polypropylene, 39 mL, 25 x 89 mm (qty. 50)
356562	Tube, Quick-Seal®, Polypropylene, 4.2 mL, 16 x 38 mm (qty. 50)
342412	Tube, Quick-Seal®, Polypropylene, 5.1 mL, 13 x 51 mm (qty. 50)
362248	Tube, Quick-Seal®, Polypropylene, 5.1 mL, 13 x 51 mm (qty. 50)
355537	Tube, Quick-Seal®, Polypropylene, 5.9 mL, 14 x 48 mm (qty. 50)
344619	Tube, Quick-Seal®, Polypropylene, 6.0 mL, 13 x 64 mm (qty. 50)
345830	Tube, Quick-Seal®, Polypropylene, 6.3 mL, 16 x 45 mm (qty. 50)
344621	Tube, Quick-Seal®, Polypropylene, 8 mL, 16 x 57 mm (qty. 50)
345778	Tube, Quick-Seal®, Ultra-Clear™, 100 mL, 38 x 102 mm (qty. 25)
344322	Tube, Quick-Seal®, Ultra-Clear™, 13.5 mL, 16 x 76 mm (qty. 50)
344324	Tube, Quick-Seal®, Ultra-Clear™, 15 mL, 25 x 38 mm (qty. 50)
344323	Tube, Quick-Seal®, Ultra-Clear™, 27 mL, 25 x 64 mm (qty. 50)
344326	Tube, Quick-Seal®, Ultra-Clear™, 39 mL, 25 x 89 mm (qty. 50)
344075	Tube, Quick-Seal®, Ultra-Clear™, 5.1 mL, 13 x 51 mm (qty. 50)
344320	Tube, Quick-Seal®, Ultra-Clear™, 6.0 mL, 13 x 64 mm (qty. 50)
342303	Tube, Thickwall, Cellulose Propionate, 230 µL, 7 x 21 mm (qty. 100)
355639	Tube, Thickwall, Polyallomer, 10.5 mL, 13 x 89 mm (qty. 25)
355657	Tube, Thickwall, Polycarbonate, 1.0 mL, 8 x 51 mm (qty. 25)
355630	Tube, Thickwall, Polycarbonate, 10 mL, 16 x 76 mm (qty. 25)
355629	Tube, Thickwall, Polycarbonate, 10.5 mL, 13 x 89 mm (qty. 25)
343775	Tube, Thickwall, Polycarbonate, 230 µL, 7 x 21 mm (qty. 100)
355635	Tube, Thickwall, Polycarbonate, 3 mL, 11 x 60 mm (qty. 25)
349622	Tube, Thickwall, Polycarbonate, 3.5 mL, 13 x 51 mm (qty. 25)
355631	Tube, Thickwall, Polycarbonate, 32 mL, 25 x 89 mm (qty. 25)
355645	Tube, Thickwall, Polycarbonate, 4 mL, 13 x 64 mm (qty. 25)
355628	Tube, Thickwall, Polycarbonate, 81 mL, 38 x 102 mm (qty. 25)
355640	Tube, Thickwall, Polypropylene, 10 mL, 16 x 76 mm (qty. 25)
343621	Tube, Thickwall, Polypropylene, 200 µL, 7 x 21 mm (qty. 100)
355636	Tube, Thickwall, Polypropylene, 3 mL, 11 x 60 mm (qty. 25)
349623	Tube, Thickwall, Polypropylene, 3.5 mL, 13 x 51 mm (qty. 25)
355642	Tube, Thickwall, Polypropylene, 32 mL, 25 x 89 mm (qty. 25)
355644	Tube, Thickwall, Polypropylene, 4 mL, 13 x 64 mm (qty. 25)
355643	Tube, Thickwall, Polypropylene, 81 mL, 38 x 102 mm (qty. 25)
358117	Tube, Thinwall, konical™, Polypropylene, 1.5 mL, 11 x 35 mm (qty 50)
358120	Tube, Thinwall, konical™, Polypropylene, 10 mL, 14 x 89 mm (qty 50)
358123	Tube, Thinwall, konical™, Polypropylene, 14.5 mL, 16 x 102 mm (qty 50)
358125	Tube, Thinwall, konical™, Polypropylene, 25 mL, 25 x 76 mm (qty 50)
358119	Tube, Thinwall, konical™, Polypropylene, 3 mL, 13 x 51 mm (qty 50)
358126	Tube, Thinwall, konical™, Polypropylene, 30 mL, 25 x 89 mm (qty 50)
331372	Tube, Thinwall, Polypropylene, 13.2 mL, 14 x 89 mm (qty. 50)
326814	Tube, Thinwall, Polypropylene, 13.5 mL, 16 x 76 mm (qty. 50)
331374	Tube, Thinwall, Polypropylene, 14 mL, 14 x 95 mm (qty. 50)
337986	Tube, Thinwall, Polypropylene, 17 mL, 16 x 102 mm (qty. 50)
344367	Tube, Thinwall, Polypropylene, 35.5 mL, 25 x 83 mm (qty. 50)
326823	Tube, Thinwall, Polypropylene, 38.5 mL, 25 x 89 mm, (qty. 50)
328874	Tube, Thinwall, Polypropylene, 4 mL, 11 x 60 mm (qty. 50)
326819	Tube, Thinwall, Polypropylene, 5.0 mL, 13 x 51 mm (qty. 50)
326820	Tube, Thinwall, Polypropylene, 6.5 mL, 13 x 64 mm (qty. 50)

345775	Tube, Thinwall, Polypropylene, 94 mL, 38 x 102 mm (qty. 25)
344087	Tube, Thinwall, Ultra-Clear™, 10.5 mL, 13 x 89 mm (qty. 50)
344059	Tube, Thinwall, Ultra-Clear™, 13.2 mL, 14 x 89 mm (qty. 50)
344085	Tube, Thinwall, Ultra-Clear™, 13.5 mL, 16 x 76 mm (qty. 50)
344060	Tube, Thinwall, Ultra-Clear™, 14 mL, 14 x 95 mm (qty. 50)
344061	Tube, Thinwall, Ultra-Clear™, 17 mL, 16 x 102 mm (qty. 50)
344091	Tube, Thinwall, Ultra-Clear™, 2 mL, 8 x 49 mm (qty. 50)
344092	Tube, Thinwall, Ultra-Clear™, 3.0 mL, 13 x 32 mm (qty. 50)
344058	Tube, Thinwall, Ultra-Clear™, 38.5 mL, 25 x 89 mm (qty. 50)
344062	Tube, Thinwall, Ultra-Clear™, 4 mL, 11 x 60 mm, (qty. 50)
344093	Tube, Thinwall, Ultra-Clear™, 4 mL, 13 x 41 mm (qty. 50)
344057	Tube, Thinwall, Ultra-Clear™, 5 mL, 13 x 51 mm (qty. 50)
344088	Tube, Thinwall, Ultra-Clear™, 6.5 mL, 13 x 64 mm (qty. 50)
344090	Tube, Thinwall, Ultra-Clear™, 800 µL, 5 x 41 mm (qty. 50)
345777	Tube, Thinwall, Ultra-Clear™, 94 mL, 38 x 102 mm (qty. 25)
