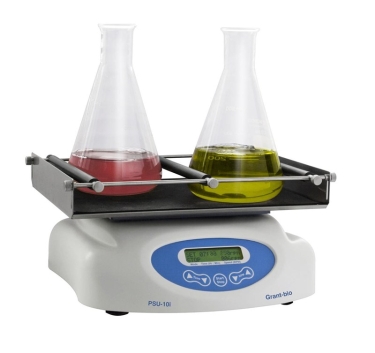

PSU-10i Orbital Shaking Platform
Microprocessor controlled shaking platform providing smooth and quiet horizontal orbital
motion for mixing in bottles, flasks and beakers.
motion for mixing in bottles, flasks and beakers.
- Variable shaking speed: 50 to 450 rpm
- Interchangeable platforms for use with a variety of vessels
- Loads up to 3 kg
- Continuous or timed operation with automatic switch-off
- Reliable direct drive system
- Automatic load balancing system
- Soft start feature ensures a smooth ramp-up - avoids potential damage to vessel content
- Exceptionally quiet motor - consistent even shaking
- 2-line LCD display clearly indicates both set and actual shaking speed, plus set and elapsed time. Works in combination with simple push buttons for easy set-up
- Choice of 4 interchangeable platforms to suit different types of vessels - maximum flexibility
- Low voltage power supply provides for safe cold room operation and low energy consumption
- Ambient operating temperature range of 4 to 40ºC allows use in cold room or incubator
- Integral electronic timer with audible alarm and automatic switch-off - accurate repeatability of time sensitive incubations
The four interchangeable accessory platforms enable a wide choice of vessels to be used, including bottles, flasks and beakers, dishes, boxes and petri-dishes.
| Shakers - models and specifications | |||
|---|---|---|---|
| (all heights excl. platform) | Multi platform shaker | Shaking platform | |
| PSU-20i | PSU-10i | ||
| Speed | rpm | 20 to 250 | 50 to 450 |
| Orbit | mm | 20 | 10 |
| Maximum load | kg | 8 | 3 |
| Capacity | 2 microplates | - | - |
| 4 microplates (with optional platform MPP-4) | - | - | |
| Timer, with automatic switch-off | 1 min to 96 hours | 1 min to 96 hours | |
| Motion timer (orbital/reciprocal modes) | sec | 0 to 250 | - |
| Motion timer (vibration mode) | sec | 0 to 5 | - |
| Display | 2-line 16 character LCD | 2-line 16 character LCD | |
| Angle (reciprocal mode) | ° | 0 to 360 | - |
| Angle (vibration mode) | ° | 0 to 5 | - |
| Input voltage | V dc | 12 | 12 |
| Input current | A | 4.16 | 1 |
| Ambient temperature range | °C | 4 to 40 | |
Suitable for use in different laboratories in microbiology, chemistry, immunology, biochemistry and molecular biology.
Options and accessories | |||||||
|---|---|---|---|---|---|---|---|
Platforms |
|||||||
| P12-100 | platform with clamps for 12 x 100ml flasks/150ml beakers | ||||||
| P6-250 | platform with clamps for 6 x 250ml flasks/beakers | ||||||
| Bio PP-4 | flat platform with non-slip rubber mat for petri dishes, culture flasks | ||||||
| PUP-12 | universal platform, with adjustable bars for flasks, bottles and beakers HB200 - extra holding bars |
||||||
| P16-88 | platform with spring holders for up to 88 tubes up to 30mm diameter | ||||||
