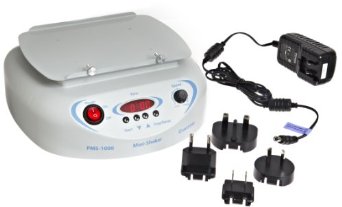

PMS-1000i Microplate Shaker
The PMS-1000i microplate shaker provides reliable, regulated shaking for two or four microplates. With a speed range of 150 to 1000 rpm, the PMS-1000i can be adjusted to suit the application - gentle shaking to ensure that the well contents are not ejected, or more vigorous agitation for effective aeration across the small surface area of each of the wells.
- Variable shaking speed: 150 to 1200 rpm
- Direct drive mechanism and brushless motor
- Set and display the speed (rpm)
- Holds two or four microtitre plates
- Quick and easy screw fitting of any standard-depth 96- or 384-well plate
- Continuous or timed operation, with automatic switch off
- Platform for two microtitre plates supplied as standard. Platform for four plates (MPP-4) available as an option
- Easy-to-use integral electronic timer ensure accurate count-down and repeatability of time-sensitive incubations
- Quick and easy to use screw fittings keep the plates securely in position and allow fitting on any standard-depth 96- or 384-well plates
- Easy to read LED display clearly indicates time remaining on timed operations and speed in rpm
- Simple graduated dial to adjust the speed to suit the application: - gentle shaking to ensure that the well contents remain in situ, or more vigorous agitation for effective aeration across the surface area of each well
| Shakers - models and specifications | ||
|---|---|---|
 = standard = optional
(all heights excl. platform) | Microplate shaker | |
| PMS-1000i | ||
| Speed | rpm | 150 to 1200 |
| Orbit | mm | 2 |
| Capacity | 2 microplates | |
| 4 microplates (with optional platform MPP-4) | |
|
| Timer, with automatic switch-off | 1 min to 23 h 59 min | |
| Display | 4 digit LED | |
| Input voltage | V dc | 12 |
| Input current | A | 0.5 |
| Operating temperature range | °C | 4 to 40 |
Suitable for mixing, incubation and cultivation of biological and chemical components in many life science disciplines including microbiology, cell and molecular biology, immunology and biotechnology. Specific applications include: immunoassays, HTS applications, colouration tests, binding of template DNA to silica-coated magnetic beads.
The PMS-1000i avoids low signal caused by inadequate re-suspension of purified PCR products, helps ensure the correct optical density in each of the wells and helps achieve maximum yield and quality in production of plasmid DNA.
