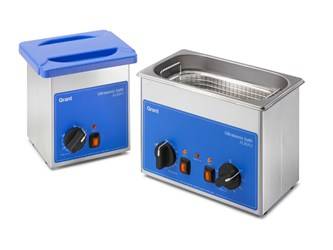

XUB/XUBA Series Digital Ultrasonic Baths
XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments such as laboratory, scientific and healthcare. Incorporating frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer vastly improved performance giving a more accurate and precise ultrasonic process.
XUBA: Compact analogue controlled range of ultrasonic baths, providing a high standard of reliable and effective ultrasonic technology. Suitable for use in a wide range of applications from healthcare to laboratories, the choice of two baths come in a great value-for-money package, with stainless steel basket and ABS plastic lid included as standard.
XUBA: Compact analogue controlled range of ultrasonic baths, providing a high standard of reliable and effective ultrasonic technology. Suitable for use in a wide range of applications from healthcare to laboratories, the choice of two baths come in a great value-for-money package, with stainless steel basket and ABS plastic lid included as standard.
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Heated ambient +5ºC to 70ºC
- SD port allows easy validation tracking between XUB series and PC. Improved software memory logs cleaning parameters allowing easy cycle repeatability and easy traceability of cycle number, time, temperature and sonics validation
- LCD Display - easy to use digital LCD control panel with user - settable parameters to suit individual requirements. Intelligent software remembers last cycle cleaning setting and accurate fluid level sensors to ensure bath is not under-filled prior to or during the cycle
- Accurate process control of time, temperature, ultrasonic activity, degas and power
- Stainless steel basket - designed specifically to generate maximum ultrasonic activity, prevent items resting on the tank and prevent operators coming into contact with chemical solutions. Included as standard.
- Ergonomic ABS plastic lid - reduces noise volume and minimises potential of aerosol escape. Included as standard.
- Lid and basket form a drip collection unit, minimising flow of contaminated liquid once cycle is finished
- Drain valve for convenient emptying
- Stainless steel basket, ergonomic lid, SD card and one bottle of M2 ultrasonic solution included as standard
- A choice of 5 sizes
- Adjustable power that can be reduced from 100 to 50% in 5% increments
- Excellent entry level ultrasonic bath
- Fast, effective, efficient, easy and safe cleaning and processing of diverse instruments, components and solutions
- Robust design offers outstanding durability and reliability
- Easy to operate and accurate control of cycle time via simple analogue controls. Easy to operate even when wearing gloves. (temperature control on XUBA3 only, XUBA1 is unheated)
- Time control 0-15 minutes on both baths
- Heated ambient +5ºC to 70ºC on the XUBA3
- Ergonomic plastic lid - Reduces noise volume and minimises potential of aerosol escape. Included as standard
- Stainless steel basket - Designed specifically to generate maximum ultrasonic activity, prevent items resting on the tank and prevent operators coming into contact with chemical solutions. Included as standard
- Stainless steel basket and ABS plastic lid forms a drip collection unit to collect excess liquid when the basket is removed from tank
- Stainless steel basket, ABS plastic lid and one bottle of M2 Ultrasonic solution included as standard
- A choice of 2 sizes
| XUB and XUBA ultrasonic water baths range - models and specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
 = standard | Digital | Analogue | ||||||
| XUB5 | XUB10 | XUB 12 | XUB18 | XUB 25 | XUBA1 | XUBA3 | ||
| Working capacity | 4.5 | 9.5 | 12.5 | 17.5 | 25 | 1.5 | 2.5 | |
| Max capacity | 5 | 10.5 | 14 | 18.5 | 28 | 1.75 | 2.75 | |
| Ultrasonic Power | W per Litre/W |
100 22.2 |
200 21 |
200 16 |
300 17 |
400 16 |
35 23.3 |
35 14 |
| Operating frequency Frequency Leap | KHz | 32-38 | 44 | |||||
| Frequency LEAP | |
|
|
|
|
- | - | |
| Heated | |
|
|
|
|
- | |
|
| Digital LCD controls | |
|
|
|
|
- | - | |
| SD port with SD card | |
|
|
|
|
- | - | |
| Maximum heating capacity | ºC | ambient + 5 to 70 | N/A | ambient + 5 to 70 | ||||
| Heater power | W | 150 | 250 | 250 | 450 | 500 | N/A | 150 |
| Timer | mins | 0-99 | 0-15 | 0-15 | ||||
| Drain outlet BSP valve | 3/8" | 1 - 2" | N/A | N/A | ||||
| Supply voltage | V | 230 | ||||||
Applications
- Healthcare/Clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
- General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubilisation
- Laboratories - cleaning of components, degassing fluids, mixing fluids and compounds, cell disruption, fluid dissolution
- Industrial - light manufacturing
- Biopharm - dissolution of samples
| XUB and XUBA ultrasonic water baths range - options and accessories | ||||||||
|---|---|---|---|---|---|---|---|---|
| Digital | Analogue | |||||||
| XUB5 | XUB10 | XUB 12 | XUB18 | XUB 25 | XUBA1 | XUBA3 | ||
| Replacement ABS lid | ||||||||
| Reduce operating noise and potential escape of aerosols (supplied as standard with the baths) | XAL5 | XAL10 | XAL12 | XAL18 | XAL25 | XAL1 | XAL3 | |
| Replacement baskets | ||||||||
| Support the items to be processed and work with the lid as a drip collection unit (supplied as standard with the baths) | XAB5 | XAB10 | XAB12 | XAB18 | XAB25 | XAB1 | XAB3 | |
| Internal basket dimensions including handle | w/d/h mm | 265 x 120 x 140 | 467 x 100 x 115 | 263 x 203 x 193 | 295 x 267 x 160 | 463 x 263 x159 | 115 x 95 x 87 | 208 x 115 x 98 |
| Ultrasonic solution | ||||||||
| General purpose detergent for use with ultrasonic baths. Pack of 6 x 1L bottles | M2 Sol | M2 Sol | M2 Sol | M2 Sol | M2 Sol | M2 Sol | M2 Sol | |
