High temperature digital block heater

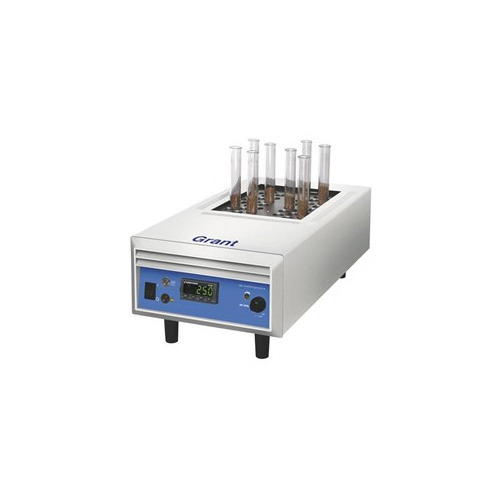

The Grant BT5D is a convenient digitally controlled dry block heating system for high temperature applications where the use of a bath is not desirable. It provides temperature control without the need for fluids and reduces the risk of contamination.
- Temperature range ambient plus 10 to 400ºC
- Stability ±0.5ºC, uniformity 1%
- Timed or continuous operation
- Choice of two models with different block capacities
- Robust construction for long term durability and reliability
- Digital controller for accurate and reproducible time and temperature setting
- An adjustable overtemperature cut-out protects users, valuable samples and the workplace
- Choice of two models: BT5D-16 for 38 x Ø 16mm tubes and BT5D-26 for 22 x Ø 26mm tubes (other sizes available)
| Products for special high temperature applications - models and specifications | |||||
|---|---|---|---|---|---|
| High temperature baths/circulators digital control | High temperature block heater, digital control | Flow heater digital control | |||
| HE10D | HE30D | BT5D | FH16-D | ||
| Temperature range | °C | 50 to 260 | ambient + 10 to 400 | ambient + 5 to 80 | |
| Stability (DIN 58966) | °C | ± 0.25 (at 150°C)* | ± 0.5 (up to 300°C) | ± 0.004 | |
| Uniformity | °C | ± 0.2 (at 150°C)* | 0.01 | - | |
| Display | LED | LED | LCD | ||
| Display resolution | °C | 1 | 1 | 0.1 | |
| Timer | mins | 1 to 9999 | 1 to 9999 | - | |
| Alarms | high/low | high/low | - | ||
| Heater power 220/240 V | kW | 1.1 | 2.2 | - | 0.75 |
| Overall consumption 220/240 V | kW | 1.2 | 2.3 | - | 0.85 |
| Liquid flow rate, maximum | L/min | 6*# | - | 19 | |
| Pump head pressure @ 0 L/min | m | 1.6*# | - | 2.2 | |
| Pipe bore | mm | 7.5# | - | - | |
| Heat up time ambient to maximum | mins | - | 100 | - | |
| Working area/tank opening | mm | 190 x 210 | 350 x 305 | - | - |
| Tank dimensions | l/w/h, mm | 305 x 210 x 185 | 455 x 305 x 240 | - | - |
| Liquid depth | min/max, mm | 100/140 | 145/190 | - | - |
| Heating block | l/w/d, mm | - | 190 x 140 x 75 | - | |
| Capacity | BT5D-16 | - | 38 x Ø 16 x d60 mm tube | - | |
| BT5D-26 | - | 22 x Ø 26 x d60 mm tube | - | ||
| Safety | overtemperature protection | adjustable cut-out | adjustable cut-out | adjustable cut-out | |
| liquid level | float switch | - | - | ||
| Electrical supply | V | - | - | 220-240 (50-60 Hz) | |
| Electrical power | 220-240 V 50/60 Hz kW | 1.2 | 1.3 | 0.75 | - |
| 110-120 V 50/60 Hz kW | 1.2 | 1.6 | 0.75 | - | |
| EMC emissions | Class A | - | - | ||
| * Using Silicon oil # Using accessory pump |
|||||
- Veterinary laboratories – digestion of tissue samples for lead analyses
- Chemical laboratories – organic synthesis
- Technology and research – materials (explosives) testing
- Any application requiring heating in a dry block up to 400ºC
