Optima™ MAX-TL

Performance. Convenience. Usability.
All components of the total system design that has come to define Beckman Coulter solutions. And all components, you’ll find, are abundantly supplied in the MAX-TL.

Árajánlatot, információt kérek!

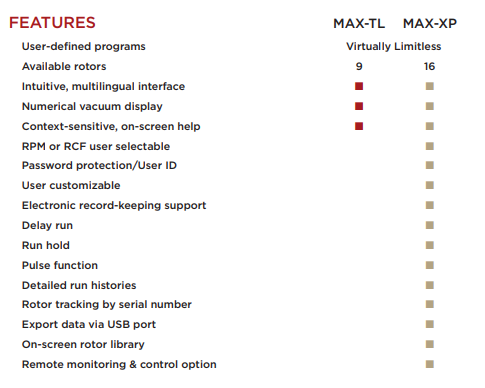

Features

Designed to ensure optimal performance and safety, this ultracentrifuge features a multi-level approach to biosafety, a color LCD touchscreen for quick setup and execution, and multilingual software available in 9 languages

System Design

Designed as a total system for better efficiency
Rotors and labware have been manufactured and tested based on unique characteristics
Interplay of dynamics to ensure optimal performance and safety

Enhanced Safety

Fits in standard biosafety hoods
BioSafe optional dual PALL® Pharmaceutical Grade Sterilizing filters

Energy Efficient

Optional pharmaceutical grade sterilizing filter offers multi-layered approach
BioSafetyFully compatible with existing TL-series rotors and labware

User-Friendly, Multilingual Interface

Full color LCD touchscreen display
Allows for large icons for easy selection
Touchscreen works with many glove types
9 different languages available for the intuitive interface (most in industry)

MAXTLXP

UNSPSC:	41103907
Height:	34.5 cm (13.6 in) front left; 39.4 cm (15.5 in) rear right
Width:	73.9 cm (29.1 in)
Depth:	61.7 cm (24.3 in)
Weight:	105 kg (230 lb)
Electrical Requirements:	100-240V, 50/60 Hz
Max Speed:	120,000 rpm
Maximum Heat Dissipation into Room under Steady-State Conditions:	2400 BTU/hr (0.7kW)
Noise Level 1 Meter in Front of Centrifuge:	< 47 dBA
Refrigeration System:	Thermoelectric—no CFCs, ODCs
Set Temperature:	0° to 40° C in 1° increments
Set Time:	to 99 hr 59 min
Speed Control:	±50 rpm of set speed
Speed Range:	5,000 to 120,000 rpm
Temperature Control:	± 2° C of set temperature
Ambient Temperature Range:	15° to 35° C
Acceleration:	10
Deceleration:	11

343837	TLA-100 Rotor Pkg, Fixed Angle, 20 x 0.2 mL, 100,000 rpm, 436,000 x g
343840	TLA-100 Rotor, Fixed Angle, 20 x 0.2 mL, 100,000 rpm, 436,000 x g
349490	TLA-100.3 Rotor Pkg, Fixed Angle, 6x3.5mL, 100,000rpm, 541,000 x g
349481	TLA-100.3 Rotor, Fixed Angle, 6 x 3.5 mL, 100,000 rpm, 541,000 x g
366735	TLA-110 Rotor Pkg, Fixed Angle, 8 x 5.1 mL, 110,000 rpm, 657,000 x g
366730	TLA-110 Rotor, Fixed Angle, 8 x 5.1 mL, 110,000 rpm, 657,000 x g
357655	TLA-120.1 Rotor Pkg, Fixed Angle, 14x0.5 mL, 120,000 rpm, 627,000 x g
362224	TLA-120.1 Rotor, Fixed Angle, 14 x 0.5 mL, 120,000 rpm, 627,000 x g
357656	TLA-120.2 Rotor Pkg, Fixed Angle, 10x2.0 mL, 120,000 rpm, 627,000 x g
362046	TLA-120.2 Rotor, Fixed Angle, 10 x 2.0 mL, 120,000 rpm, 627,000 x g
366725	TLA-55 Rotor Pkg, Fixed Angle, 12 x 1.5 mL, 55,000 rpm, 186,000 x g
366720	TLA-55 Rotor, Fixed Angle, 12 x 1.5 mL, 55,000 rpm, 186,000 x g
357614	TLN-100 Rotor Pkg, 8 x 3.9 mL, 100,000 rpm, 450,000 x g
357683	TLN-120 Rotor Pkg, 8 x 1.2 mL, 120,000 rpm, 585,000 x g
346134	TLS-55 Rotor Pkg, Swinging Bucket, 4 x 2.2 mL, 55,000 rpm, 259,000 x g
346936	TLS-55 Rotor, Swinging Bucket, 4 x 2.2 mL, 55,000 rpm, 259,000 x g

355919	Adapter, Delrin, Tube, 11 mm dia (qty. 6)
393238	Adapter, Delrin, Tube, 11 mm dia (qty. 8)
360951	Adapter, Delrin, Tube, 11 mm dia (qty. 8)
358614	Adapter, Delrin, Tube, 5 mm dia (qty. 4)
358615	Adapter, Delrin, Tube, 7 x 20 mm (qty. 4)
342883	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
362198	Spacer, Aluminum, Tube, 13 mm dia (qty. 1)
362307	Spacer, Floating, Delrin, Tube, 13 mm dia (qty. 8)
360270	Spacer, Floating, Noryl, Tube, 13 mm dia (qty. 8)
344674	Spacer, Noryl, Tube, 11 mm dia (qty. 1)
355937	Spacer, Noryl, Tube, 13 mm dia (qty. 6)
344636	Spacer, Polyetherimide, Tube, 11 mm dia (qty. 1)
361676	Spacer, Ultem, Tube, 13 mm dia (qty. 2)

361627	Tube, OptiSeal™, Polypropylene, 3.3 mL, 13 x 33 mm (qty. 56)
361621	Tube, OptiSeal™, Polypropylene, 4.7 mL, 13 x 48 mm (qty. 56)
344624	Tube, Quick-Seal®, Polypropylene, 1.5 mL, 11 x 25 mm (qty. 50)
345829	Tube, Quick-Seal®, Polypropylene, 2 mL, 13 x 25 mm (qty. 50)
344625	Tube, Quick-Seal®, Polypropylene, 2.0 mL, 11 x 32 mm (qty. 50)
349621	Tube, Quick-Seal®, Polypropylene, 3.5 mL, 13 x 32 mm (qty. 50)
358980	Tube, Quick-Seal®, Polypropylene, 3.9 mL, 13 x 38 mm (qty. 50)
362248	Tube, Quick-Seal®, Polypropylene, 5.1 mL, 13 x 51 mm (qty. 50)
342303	Tube, Thickwall, Cellulose Propionate, 230 µL, 7 x 21 mm (qty. 100)
343778	Tube, Thickwall, Polycarbonate, 1 mL, 11 x 34 mm (qty. 100)
343775	Tube, Thickwall, Polycarbonate, 230 µL, 7 x 21 mm (qty. 100)
362305	Tube, Thickwall, Polycarbonate, 3.2 mL, 13 x 56 mm (qty. 50)
349622	Tube, Thickwall, Polycarbonate, 3.5 mL, 13 x 51 mm (qty. 25)
343776	Tube, Thickwall, Polycarbonate, 500 µL, 8 x 34 mm (qty. 100)
343622	Tube, Thickwall, Polyethylene, 175 µL, 5 x 20 mm (qty. 100)
347287	Tube, Thickwall, Polypropylene, 1.0 mL, 11 x 34 mm (qty. 100)
343621	Tube, Thickwall, Polypropylene, 200 µL, 7 x 21 mm (qty. 100)
362333	Tube, Thickwall, Polypropylene, 3.2 mL, 13 x 56 mm (qty. 50)
349623	Tube, Thickwall, Polypropylene, 3.5 mL, 13 x 51 mm (qty. 25)
343777	Tube, Thickwall, Polypropylene, 500 µL, 8 x 34 mm (qty. 100)
342630	Tube, Thinwall, Polypropylene, 175 µL, 5 x 20 mm (qty. 100)
347357	Tube, Thinwall, Polypropylene, 2.2 mL, 11 x 35 mm (qty. 50)
347356	Tube, Thinwall, Ultra-Clear™, 2.2 mL, 11 x 35 mm (qty. 50)
357448	Tube, with Snap-On Cap, Polypropylene, 1.5 mL, 11 x 38 mm, Natural (qty. 500)
