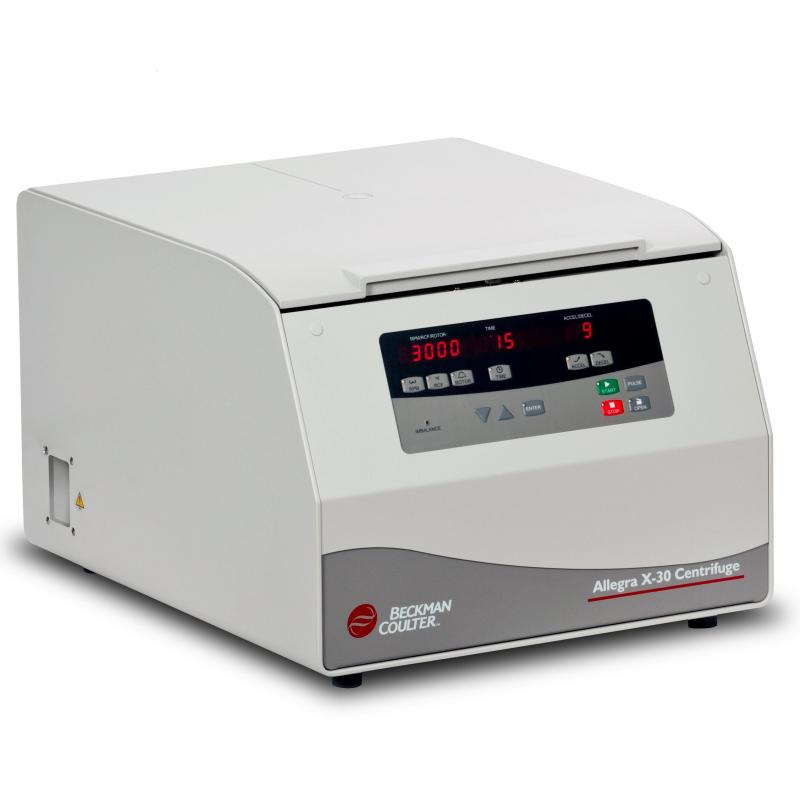

Allegra® X-30 Series

• Excellent Performance – Highest Speed and g-force in its class
• Easy to Use – Extensive Rotor Library for multiple applications
• Compact Design – Only 18 inches/46cm wide
• BioCertified* swinging-bucket and fixed-angle rotors

3 different ways to spin 1.5mL & PCR Tubes:

• BioCertified* 24-place fixed-angle rotor – 29,756 x g
• 30-place fixed-angle rotor – 28,672 x g
• 24-place swinging-bucket rotor – 16,244 x g for flat pelleting

The SX4400 Swinging Bucket Rotor Spins 500 µL to 1.6L:

• 4 x 400 mL – Maximum Capacity
• 4,700 rpm – 4,255 x g – Maximum g-force
• 20 Different adapters
• Spins
  • 400mL bottles
  • 250 mL Bottles
  • 100 mL, 94 mL, 85 mL Bottles
  • 50 mL Conical and Round-bottom Tubes
  • 15 mL Conical and Round-bottom Tubes
  • 30 mL, 25 mL, 10 mL, 5mL Tubes
  • 1.5 mL and 500 µL PCR Tubes

S6096 Microplate Rotor:

• 2x3 microplates or 2x1 deep-well plates - Maximum Capacity
• Ambient  4700 rpm / 2721 x g – Maximum g-force
• Refrigerated 4700 rpm / 2721 x g – Maximum i-force

F2402H Fixed Angle Rotor:

• BioCertified* 24 x 1.5 / 2ml micro tubes - Maximum Capacity
• Ambient  16000 rpm / 23511 x g – Maximum g-force
• Refrigerated 18000 rpm / 29756 x g – Maximum g-force
• Spins
  • 1.5 mL and 500 µL PCR Tubes
