ES-20/80 Orbital Shaker-Incubator
Applications
Microbial and cell culture cultivation
Protein expression
Solubility studies
General mixing in controlled conditions
Various other applications in the field of Life Science & Chemistry
The advanced ES-20/80 shaker-incubator is designed for biotechnological and pharmaceutical laboratories.
The temperature range is from 5 °C above ambient up to +80 °C with temperature uniformity of ±0.3 °C at 37 °C . The ES-20/80 has a settable speed control range of 50-400 rpm (in 10rpm increments).
The inner chamber is made of stainless steel. State-of-the-art motor, thermal insulation materials and parameter PID control decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.

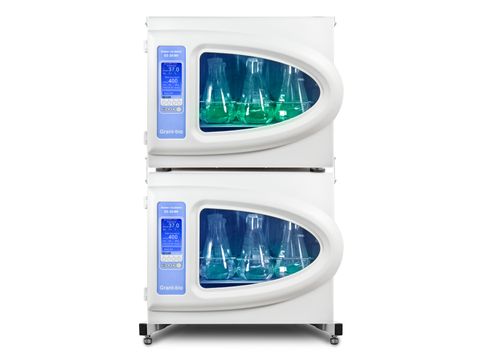

Up to 3 units can be stacked, which enables you to save valuable floor and bench space. The new clear touchscreen display and simple interface provides a clear and intuitive control of parameters. It also allows data logging, storage and display over time.
Bluetooth® connectivity to PC allows for data management, data logging, parameter control and profiling in the included software.
Available with 5 interchangeable platforms and stacking kits. Must be ordered separately.
Specifications
Accessories
ESSK2
Stacking kit for 2 x ES-20/80
ESSK3
Stacking kit for 3 x ES-20/80
BLUEAD
Bluetooth adapter
PP-400
Platform flat non-slip mat 360 x 400mm
UP-168
Universal platform for different flasks (360 x 400ml). Tight fit clamp for HSC-50 (50ml, diameter 50mm). Tight fit clamp for HSC-100 (100ml, diameter 65mm). Tight fit clamp for HSC-250 (250ml, diameter 85mm). Tight fit clamp for HSC-500 (500ml, diameter 105mm). Tight fit clamp for HSC-1000 (1000ml, diameter 130mm).
HSP-30/100
Platform with clamps for 30 x 100-150ml flasks
HSP-6/1000
Platform with clamps for 6 x 1000ml flasks
HSP-9/500
Platform with clamps for 9 x 500ml flasks
HSP-16/250
Platform with clamps for 16 x 250-300ml flasks
HSC-50
Tight fit clamp for 50 ml flasks. For use with the UP-168 universal platform
HSC-100
Tight fit clamp for 100 ml flasks. For use with the UP-168 universal platform
HSC-250
Tight fit clamp for 250 ml flasks. For use with the UP-168 universal platform
HSC-500
Tight fit clamp for 500 ml flasks. For use with the UP-168 universal platform
HSC-1000
Tight fit clamp for 1000 ml flasks. For use with the UP-168 universal platform
TR-44/15
Adjustable angle test tube rack for UP-168 (44 x 15ml tubes)
TR-21/50
Adjustable angle test tube rack for UP-168 (21 x 50ml tubes)
SPML
Double-sided adhesive strips for use with the UP-168 universal platform
