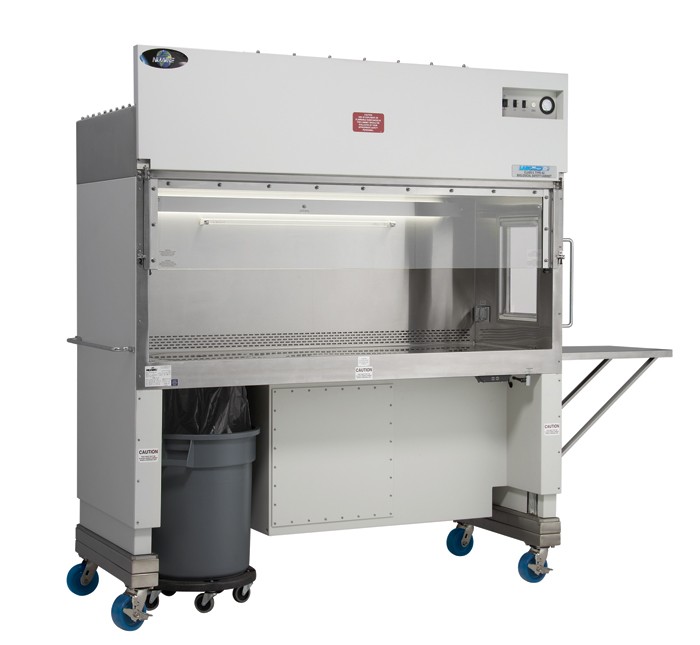

LabGard ES (Energy Saver) NU-602 Class II, Type A2 Animal Handling Biosafety Cabinet
Built to Order Customized Workflow
Standard – Just like our CellGard and LabGard line of Biosafety Cabinet, LabGard 602 provides ISO Class 5 Air conditions for product sterility, technician allergen protection through a dynamic air barrier and HEPA filtration.

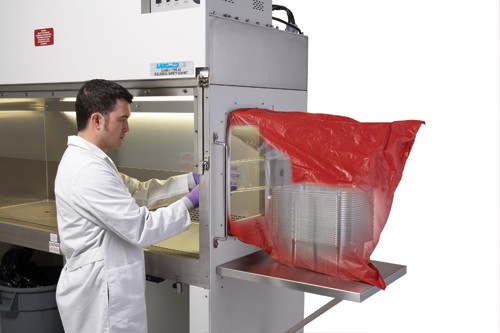

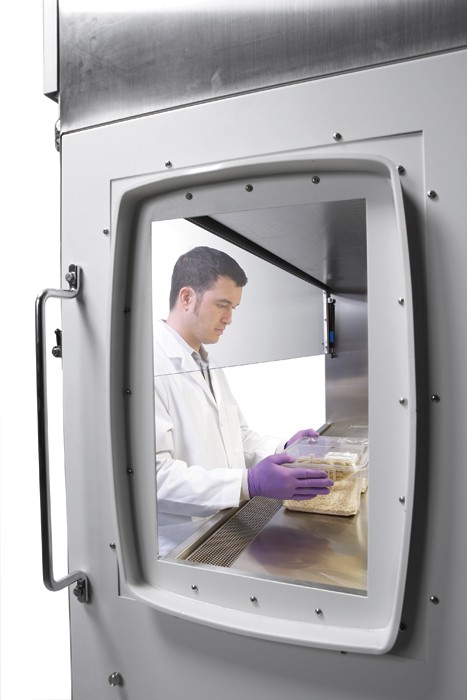

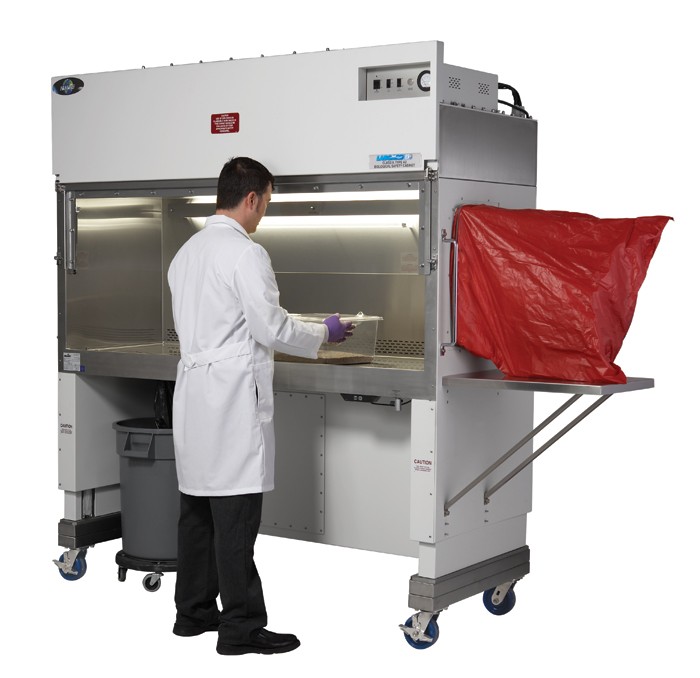

Dirty Cage Collection – A pass through allows technicians to place dirty cages from cage changing procedures through a door in the side wall into a biohazard bag.

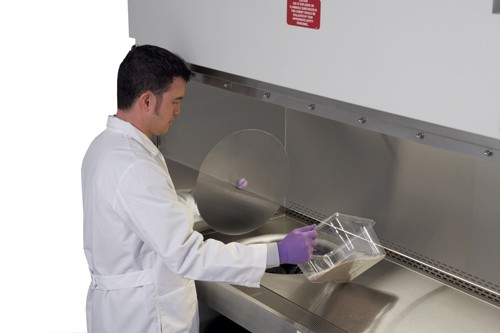

Refuse Disposal – Dispose of animal bedding under Class II containment conditions with a built in waste disposal chute in the work surface.
Sterile Cage Delivery – A spring balanced platform is built into the work surface to hold up to 50 sterile cages under Class II containment conditions.
Combinations – Combine the Dirty Cage Collection option with either Refuse Disposal or Sterile Cage Delivery Systems to maximize your workflow under sterile conditions.

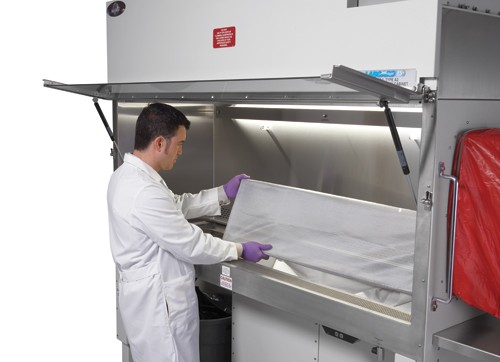

Pre-Filter System
An easy accessible and cleanable pre-filter under the work surface captures bedding, hair and dander extending the life of your HEPA filters.

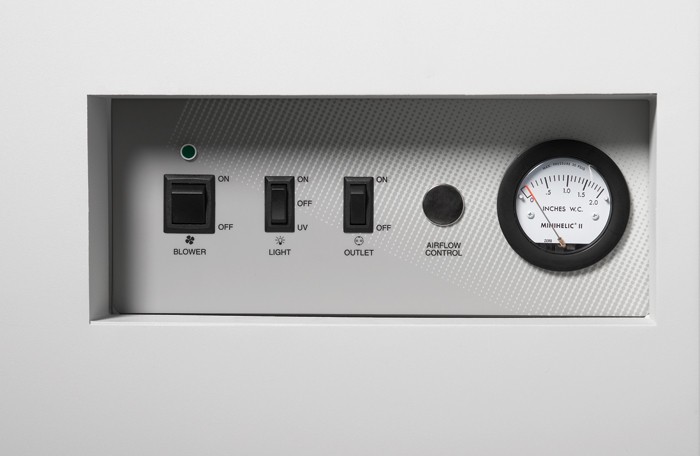

Essentials Control System
Simple switches control the blower, lights, outlets while a mini-helic gauge measures plenum performance.
Energy Saver Motor
An ultra high efficiency motor saves on your energy bills while increasing filter life lowering your total cost of ownership.
Experience Ergonomics
Ergonomic design encourages proper posture reducing fatigue.

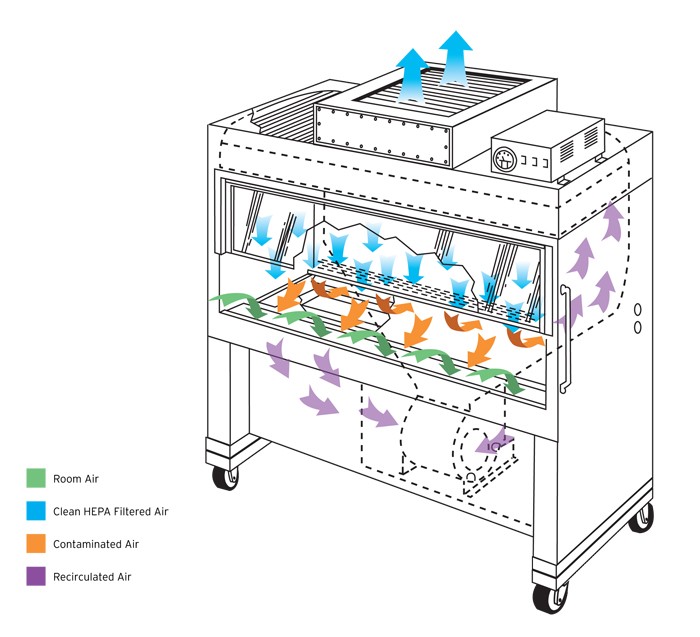

TruLaminar Airflow
Unidirectional airflow moving along parallel flow lines at a constant velocity of 60 fpm (0.30 m/s) minimizes air turbulence within the work zone lessening the chance for cross contamination.
Dynamic Air Barrier
Strong inflow air velocity of 105 fpm (0.53 m/s) over an aerodynamic airfoil creates maximum personnel protection.
HEPEX™ Zero Leak Airflow System
The HEPEX™ plenum inflates to provide quiet uniform air without transferring vibration. Positive pressure chambers and ducts are surrounded by negative pressure eliminating potential leaks. HEPEX™ fabrics are incredibly durable. They are flameproof, provide a barrier against water, gases, fluid, and dust as well as resist to chemicals, oils, and greases. It even holds antibacterial properties and is impregnable meaning harmful materials become trapped in the filters.
Attenumount
Vibration and sound control.
Large 12" (305 mm) Access Opening
Locking Swivel Casters (Low Profile, Stainless Steel)
Ergonomic Electric Auto-lift
Stainless Steel Interior
Liquid Drain Valve
Fluorescent Lighting
Tempered Glass View Screen
Optional Features
Germicidal UV Light
Decorative Front Panel
Metal Framed HEPA Filters
Lay in Sorbent Exhaust Filter
Base Stand Risers
Additional Duplex Outlets
GFI
Exhaust Transitions
Exhaust Interlocks
Service Valves
Water Systems
IV Bar w/ 6 Hooks
Custom Solutions
| Model | NU-602-400 | NU-602-500 | NU-602-600 |
| Nominal Size | 4 ft. (1.2 m) | 5 ft. (1.5 m) | 6 ft. (1.8 m) |
| Style of Cabinet | Console | Console | Console |
| Sash Height | 12" (305 mm) | 12" (305 mm) | 12" (305 mm) |
| Exterior Dimensions (W x D x H) in. [mm] |
50 ½ x 31 ¾ x 77 (1283 x 806 x 1956) | 62 ½ x 31 ¾ x 77 (1588 x 806 x 1956) | 74 ½ x 31 ¾ x 77 (1892 x 806 x 1956) |
| Interior Dimensions (W x D x H) in. [mm] |
46 ½ x 24 ½ x 26 ½ (1232 x 622 x 673) | 58 ½ x 24 ½ x 26 ½ (1486 x 622 x 673) | 70 ½ x 24 ½ x 26 ½ (1791 x 622 x 673) |
| Weight | 780 lbs. / 354 kg. | 880 lbs. / 400 kg. | 980 lbs. / 445 kg. |
| Inflow Velocity | 105 fpm (.53 m/s) | 105 fpm (.53 m/s) | 105 fpm (.53 m/s) |
| Downflow Velocity | 60 fpm (0.30 m/s) | 60 fpm (0.30 m/s) | 60 fpm (0.30 m/s) |
| Heat Rejected, BTU, Per Hour | 1440 | 2100 | 2580 |
| Sound Pressure Level | <67 dBa | <67 dBa | <67 dBa |
| Light Intensity foot-candles (LUX) | 90 to 120 (968 to 1291) | 90 to 120 (968 to 1291) | 90 to 120 (968 to 1291) |
| Accolades | UL, UL-C, CE, Energy Saver, Personnel Product Environmental Protection, RoHS |
